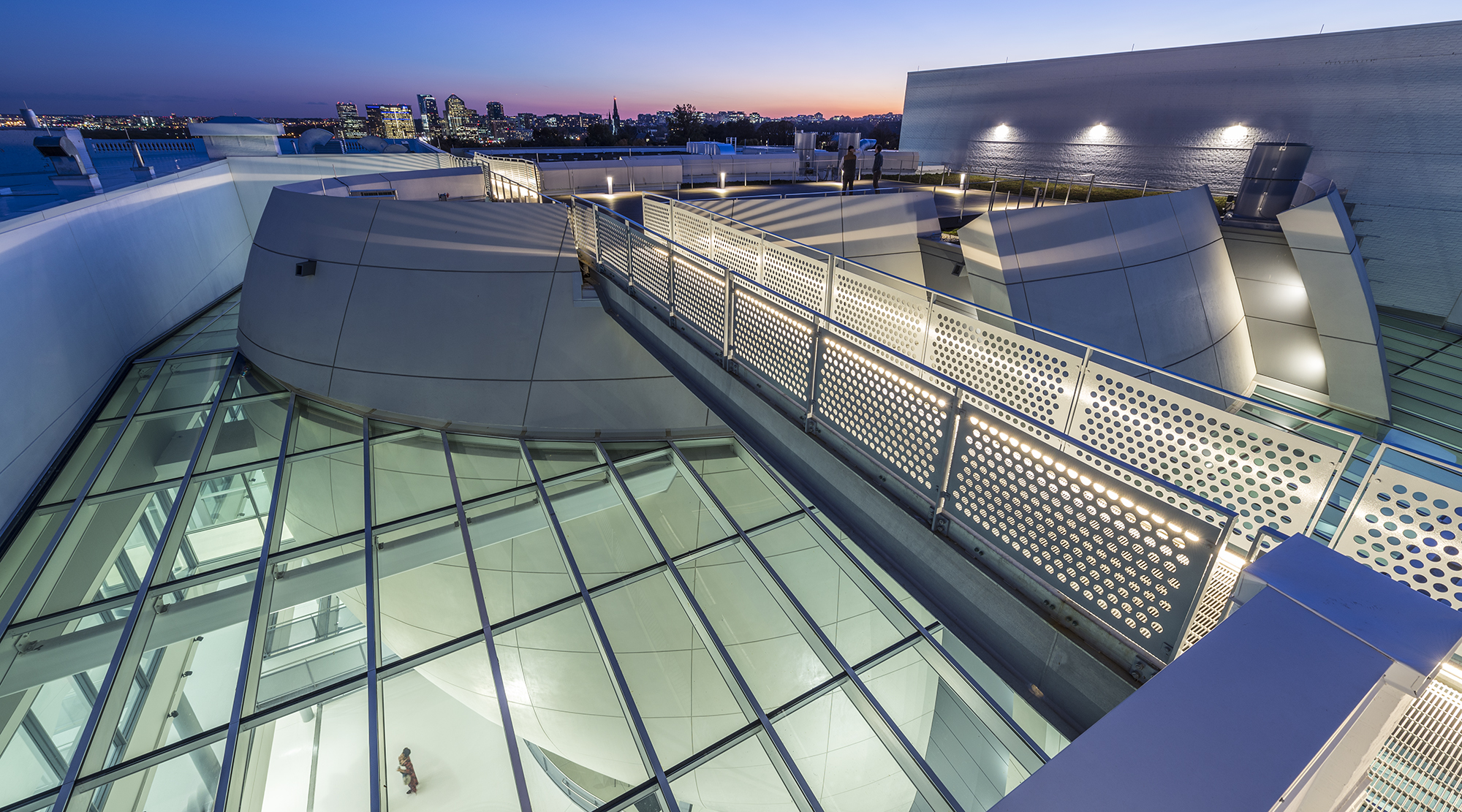

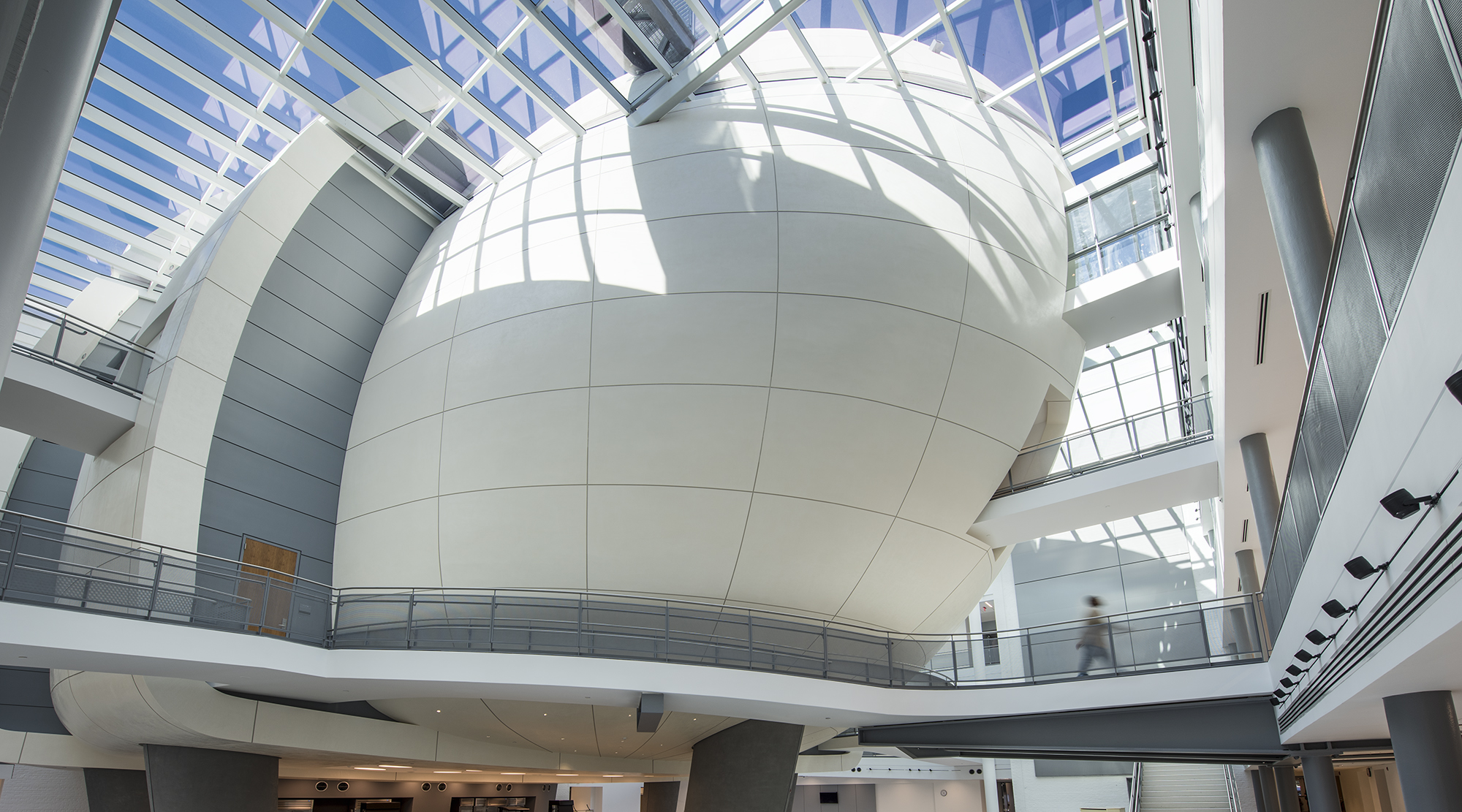

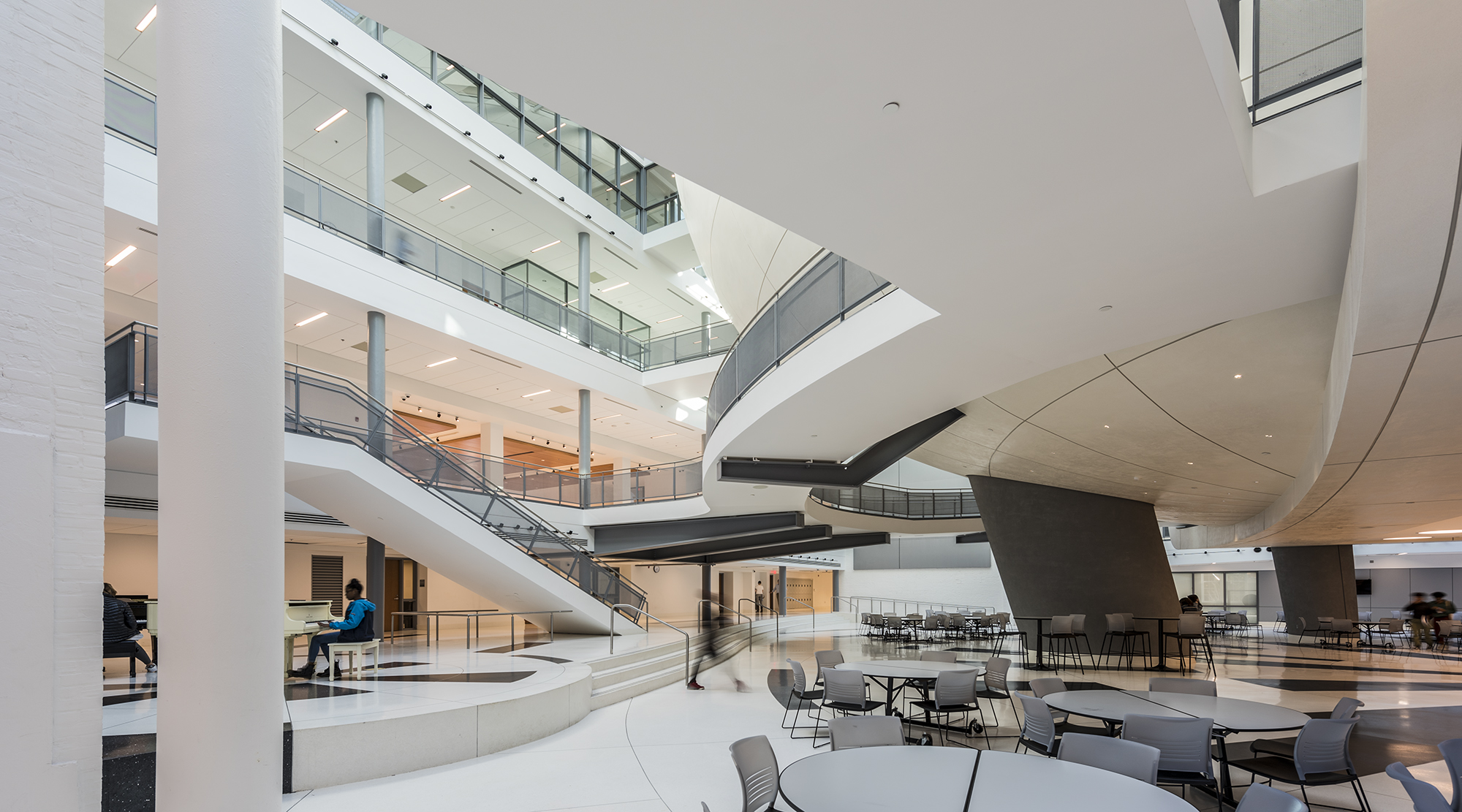

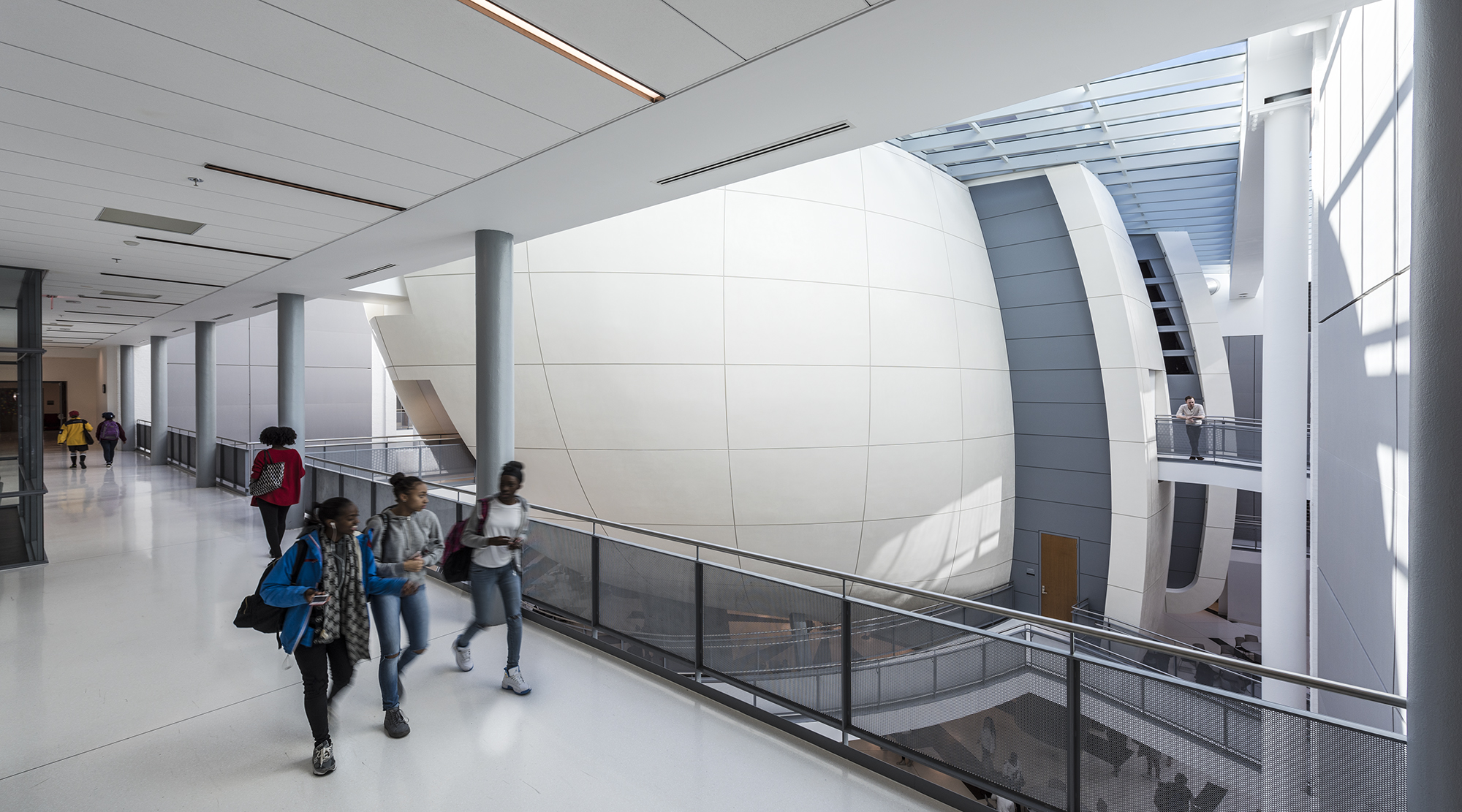

A uniquely designed egg-shaped theater, the exterior (shell) consisted of custom radius light gauge structural box beams installed in an east/west layout. The box beams were cross-furred with a curved light gauge hat channel in a north/south orientation. Each individual radius light gauge structural framing member had to be installed with exact precision using a total station to provide XYZ coordinates for each connection point back to the structural steel, as well as member-to-member connections. The system spanned from the underbelly at the cafeteria level up and through the skylight above.
Once framed and insulated, three layers of gypsum board were fastened to the curved surface. The sheetrock surface was scheduled to receive an anti-crack plaster as well as a 10’x6′ reveal pattern, so PCI worked with the manufacturer to create a custom reveal that could be installed on the radius surface and receive the plaster finish. The reveals were also installed using the total station and XYZ coordinates.

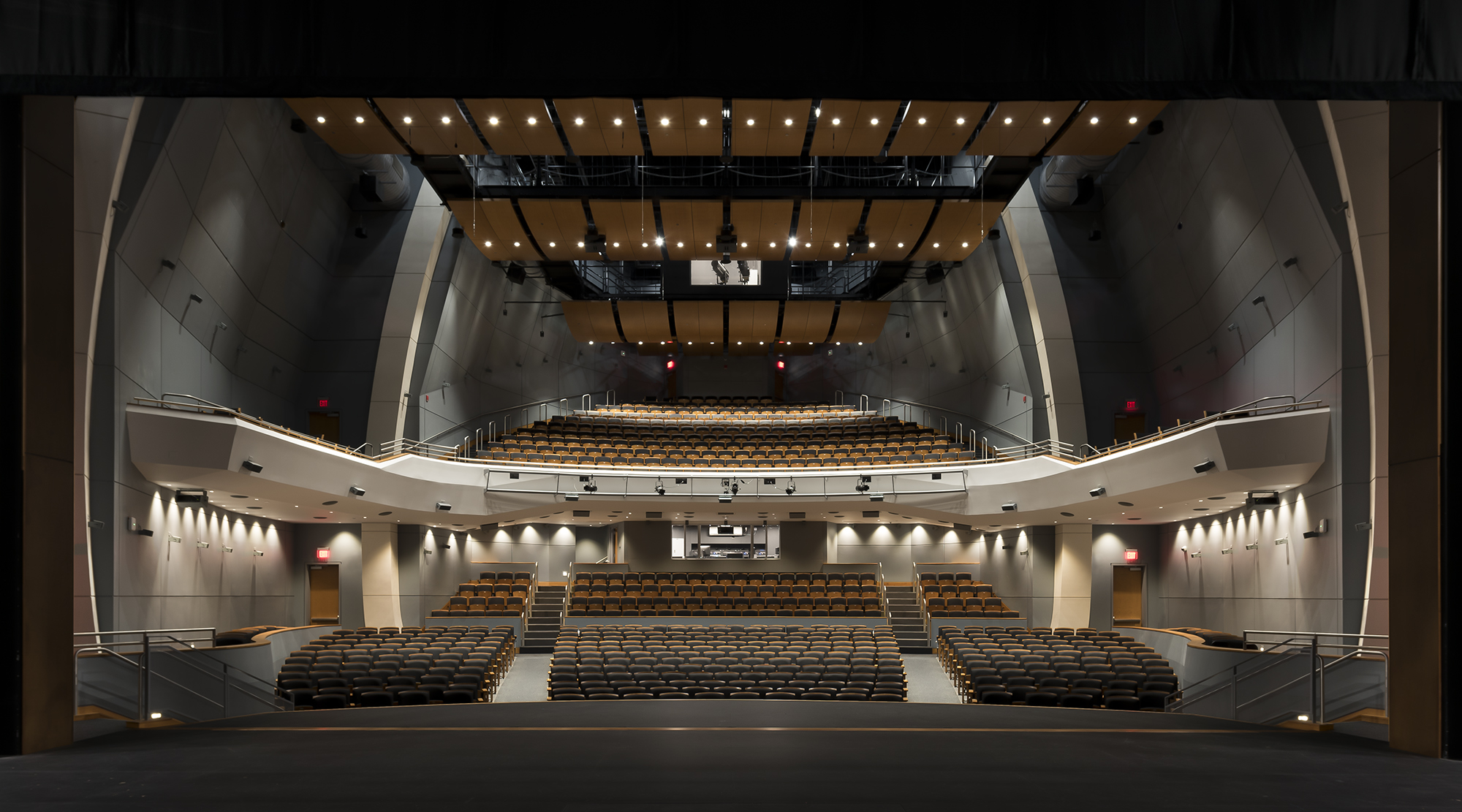

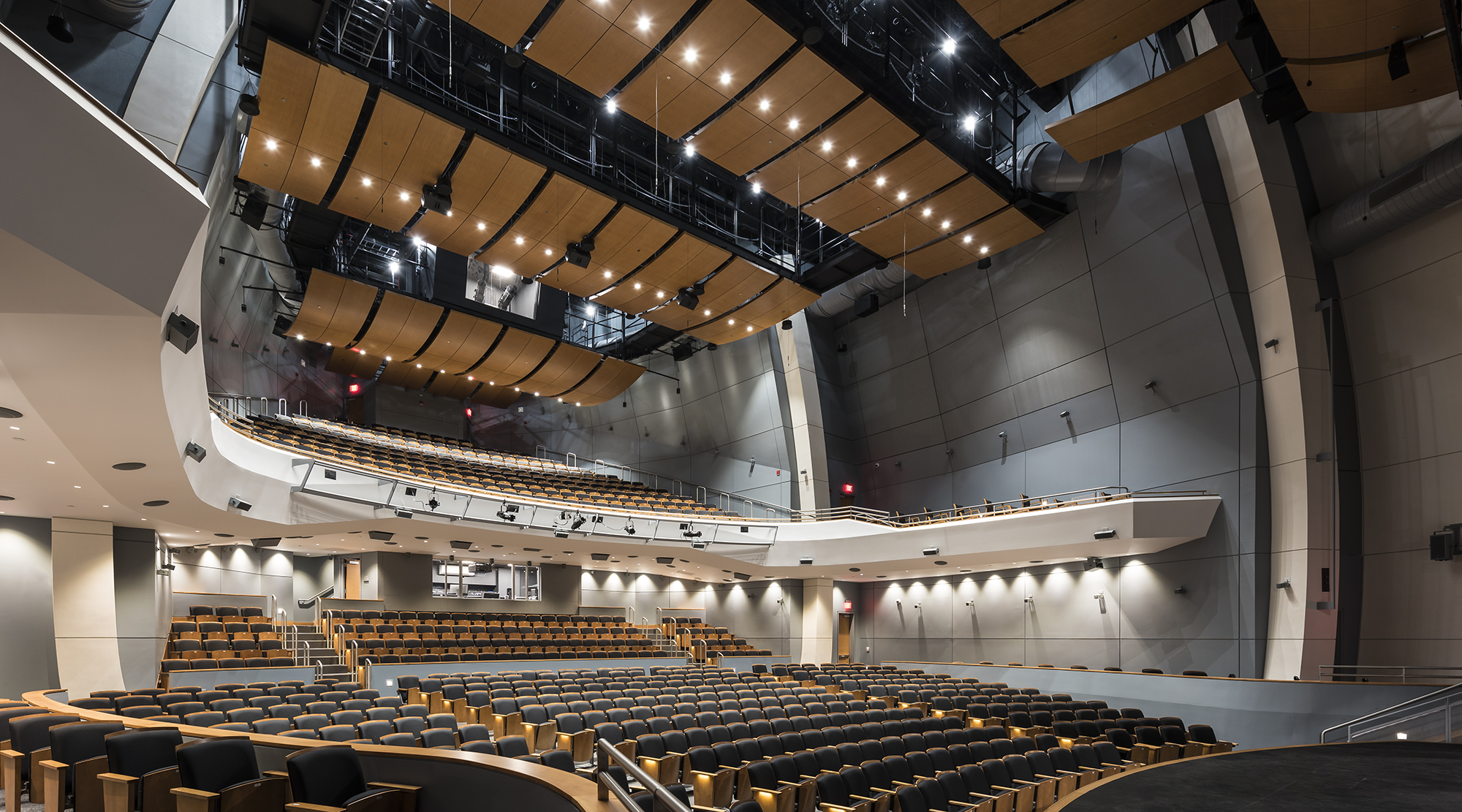

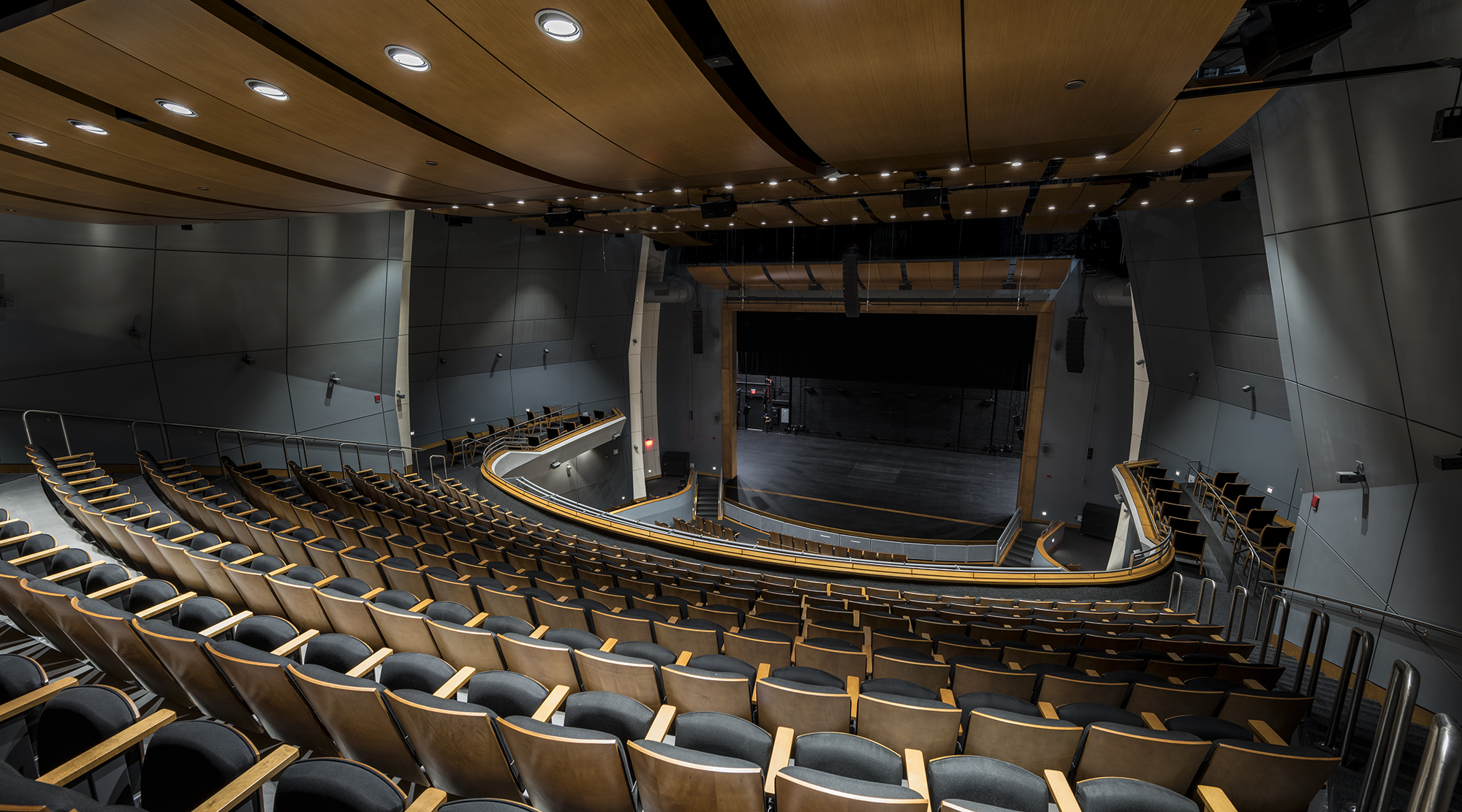

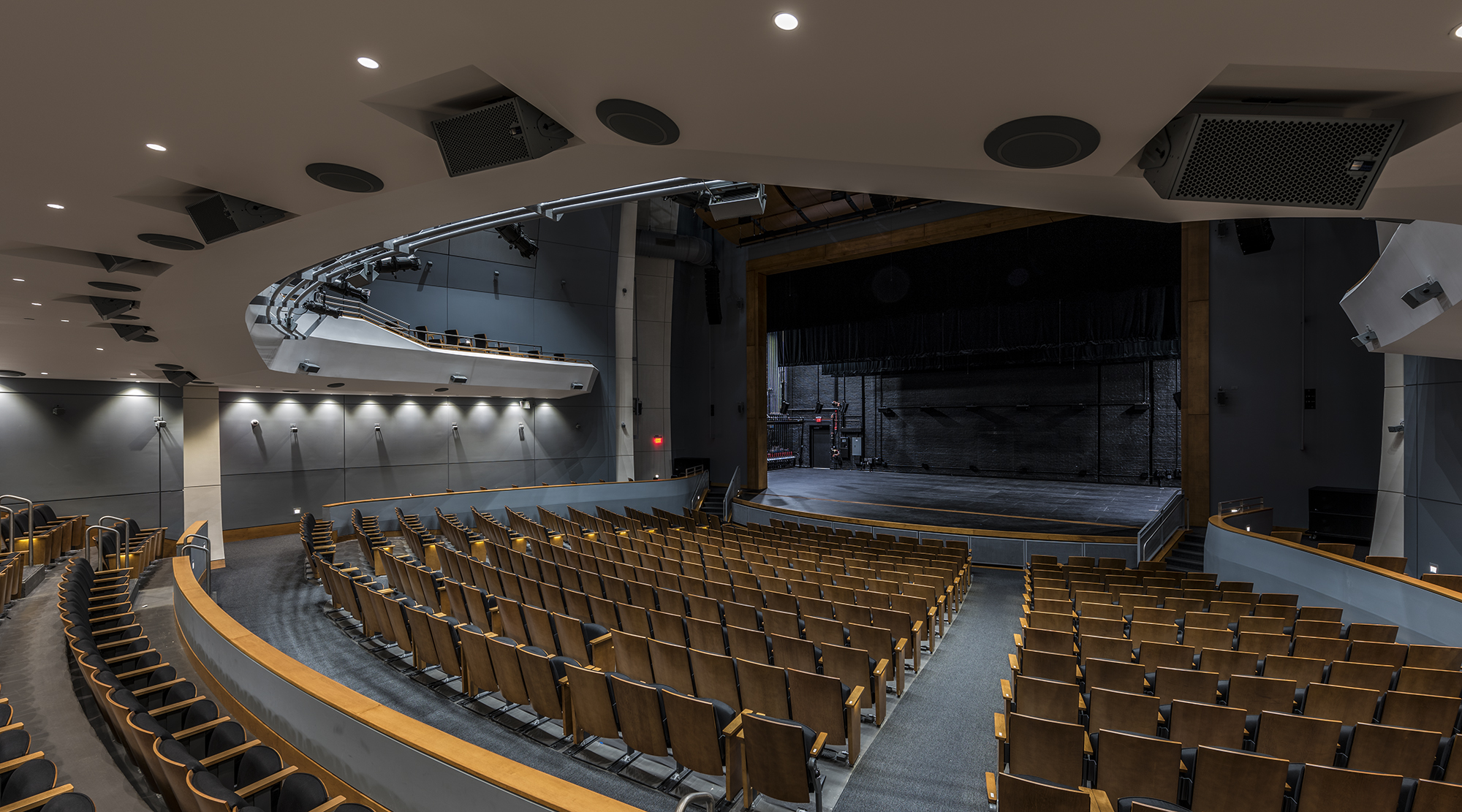

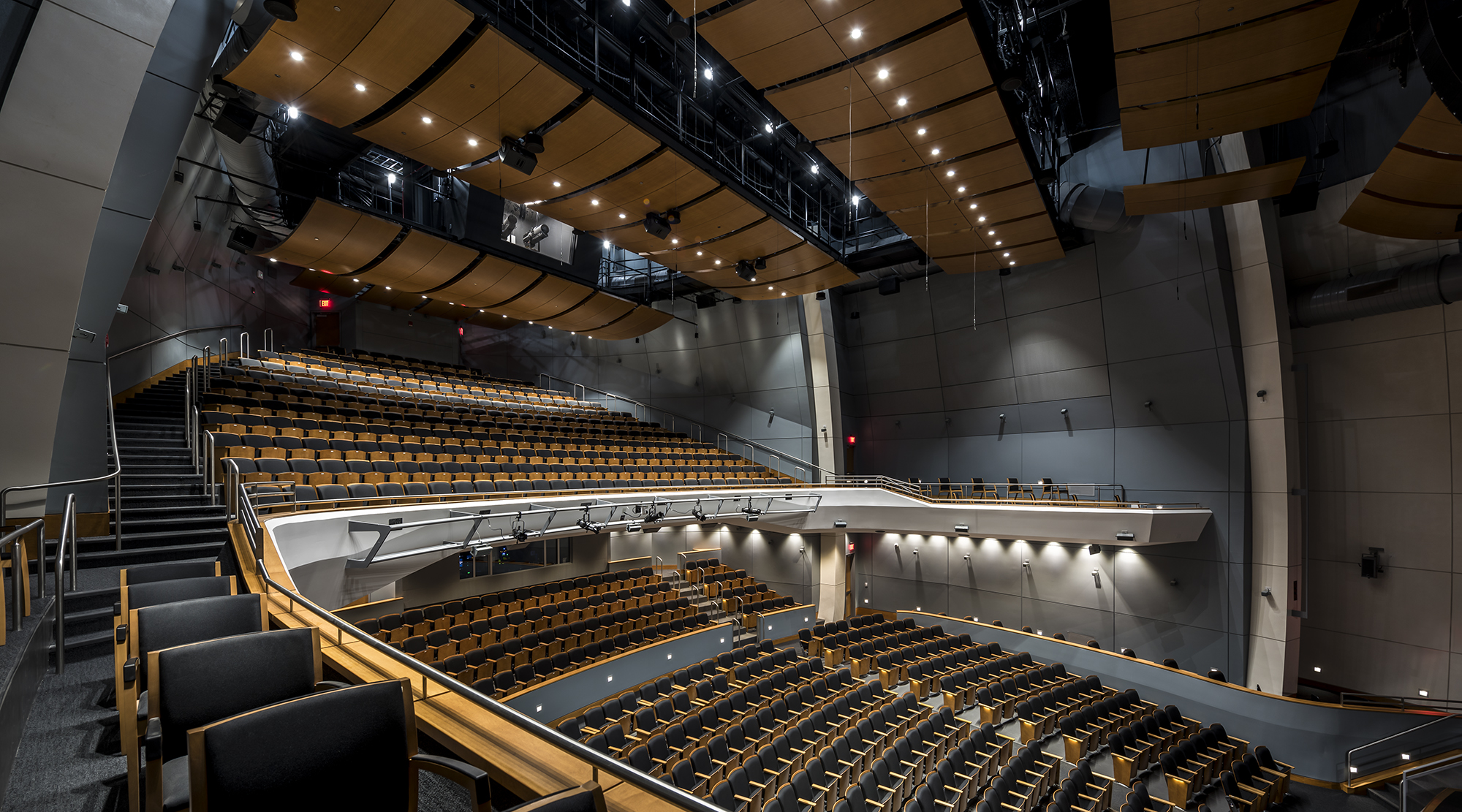

The interior of the theater consisted of segmented and inverted walls, spanning up to 50 feet in some areas. These were constructed using light gauge structural framing with four layers of gypsum board applied to the framing. These walls also included a 10’x6’ reveal pattern that had to be installed using the total station and XYZ coordinates. The most challenging aspect of this work was ensuring that the framing, finished sheetrock substrate, and reveals all remained symmetrical within the theatre. All of the interior walls received a level 5 finish. Custom wooden acoustical curved ceiling clouds were installed below and between the theatre catwalks. Acoustical wall panels were also installed on the radius walls within the orchestra pit.
PROJECT STATS
Theater Shell:
- Densglass Sheathing: 14,080 SF/35,200 lbs; 440 Sheets
- 5/8” Sheetrock: 92,080 SF/202,576 lbs; 2,302 Sheets
- 1/4” Sheetrock: 15,808 SF/14,227 lbs; 494 Sheets
- Total Sheetrock/Sheathing = 121,968 SF = 3,236 sheets = 252,003 lbs (126 Tons)
- PCI installed a total of 7,040 LF of reveals (704 Pieces) and 205 intersections.
RADIUS TRACK:
- Hat Channel: 13,203 linear feet/2.5 miles; 1,574 pieces
- Assembled Box Beams: 3,282 linear feet; 310 pieces
- TOTAL FRAMING: 15,654 parts delivered to jobsite
Theater Interior:
- 5/8” Sheetrock: 72,920 SF = 160,424 lbs = 1,823 Sheets
- 5/8” Extreme Impact Sheetrock: 10,400 SF = 29,120 lbs = 260 Sheets
- Total Sheetrock/Sheathing = 83,320 SF = 2,083 sheets = 189,544 lbs (94 Tons)
- PCI installed a total of 3,850 LF of reveals (385 Pieces) and 86 intersections.
Total Combined Sheetrock/Sheathing = 205,288 SF = 5319 sheets = 441,547 lbs (220 Tons)
Total Combined Reveals = 10,890 LF (1,089 Pieces) and 291 Intersections
GCS SIGAL Inc.
Radius track box beams, out riggers and hat channel, plaster reveals, acoustical wood wall and ceiling panels, metal stud, drywall, DFH, ACT, level 5 throughout
